If you’ve ever tried to install a new lockset, upgrade your door hardware, or troubleshoot a stuck mechanism, you’ve probably realized that door lock parts are more intricate than they appear. Each component plays a role in functionality, durability, and security. This guide breaks down the anatomy of a door lock, explains how each part contributes to performance, and includes helpful measurement tips for installation.

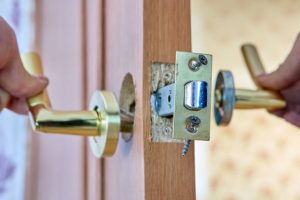

The Main Components of a Door Lock Assembly
A door lock assembly typically consists of several interconnected parts. While the appearance may vary between brands and models, the core structure remains fairly consistent for residential and commercial doors.
1. Exterior and Interior Handles
These can take the form of knobs or levers. They’re the first point of interaction, allowing users to manually turn or push down to engage the locking mechanism. Interior levers often contain a thumb turn for locking from the inside, especially on privacy sets.
2. Spindle
Located between the handles, the spindle is a square metal rod that connects both sides. Turning the handle rotates the spindle, which in turn retracts the latch. Its length must correspond with the door’s thickness.
3. Cylinder
The lock cylinder houses the keyway and internal pins (for pin tumbler systems). When a key is inserted and turned, it aligns the pins, allowing the cylinder plug to rotate and engage or disengage the bolt. Cylinders come in various types, such as single, double, or high-security versions, depending on the application.
4. Latch Bolt
Often called the “door tongue,” this spring-loaded metal piece extends from the door edge into the strike plate on the frame. When the handle or knob is turned, the spindle pulls the latch back to open the door.
Additional Door Lock Components and Their Roles
5. Strike Plate
Attached to the door frame, the strike plate has a hole that receives the latch bolt when the door is closed. It also reinforces the area to resist force. For better protection, especially in exterior doors, strike plates should be installed with long screws that reach deep into the frame stud.
6. Faceplate
Mounted on the edge of the door, this metal plate surrounds the latch bolt and helps secure it in place. It’s usually rectangular with rounded corners, matching the cutout in the door edge.
7. Chassis
The chassis is the internal structure housing the core mechanical parts. It’s hidden by the rose or trim and supports the overall function by holding everything together. Though not always visible, it’s essential for proper alignment and stability.
8. Thumb Turn
Common in residential locksets, this small lever or dial allows the door to be locked or unlocked from the inside without a key. It’s frequently used in bathrooms and bedrooms, or as part of a deadbolt assembly.
9. Lock Pins and Springs (for Cylindrical Locks)
Inside the cylinder, there are pairs of pins (driver pins and key pins) and small springs. Inserting the correct key lifts the pins to align at the shear line, allowing rotation. This is the basis of most pin tumbler mechanisms, which are standard in residential locks.
10. Deadbolt
A deadbolt differs from a spring latch in that it’s not spring-loaded and must be manually extended or retracted. It’s considered more secure and is often installed alongside a standard lockset for added protection. The bolt is heavier and moves directly into a strike plate cutout in the frame.
Specialized Door Lock Parts You May Encounter
Beyond standard configurations, some locks include additional hardware depending on usage and security level.
- Deadlocking Plunger: Positioned beside the latch bolt, this secondary piece prevents the latch from being pushed back with tools like credit cards. It increases resistance to bypass techniques.
- Escutcheon Plate: This decorative plate surrounds the keyhole or handle base. It also covers screws and adds a finished look.
- Backplate: Found behind the faceplate, it helps secure the latch and prevent shifting during use.
- Mounting Screws: Though seemingly minor, these screws hold the door lock components together and anchor them to the door and frame. High-quality hardware is critical for maintaining structural integrity.
Measuring for New Door Lock Installation
Before purchasing a replacement or upgrading your lockset, it’s important to take precise measurements:
- Door Thickness: Most interior doors are 1⅜ inches thick; exterior doors are usually 1¾ inches. This affects spindle length and lock body fit.
- Borehole Diameter: The standard cross bore (the large hole for the handle assembly) is 2⅛ inches in diameter.
- Edge Bore: Also known as the latch bore, this is typically 1 inch in diameter and accommodates the latch mechanism.
- Backset: The distance from the door edge to the center of the cross bore, usually 2⅜ or 2¾ inches. It determines how far the handle or knob is set back.
Incorrect measurements can lead to improper alignment or difficulty securing the hardware, so double-check before drilling or ordering new parts.
Lockset Types and Performance Implications
Different lockset types come with variations in security level, ease of installation, and intended use:
- Privacy Locks: Ideal for interior doors, often feature a thumb turn and no key.
- Passage Sets: These don’t lock at all—suitable for hallways or closets.
- Entry Locks: Designed for exterior doors, they include a keyed cylinder and offer increased resistance to forced entry.
Choosing the right lockset type and understanding the components of a door lock can significantly impact both usability and safety.
Final Thoughts on Lock Anatomy and Security
Gaining a clear understanding of lock anatomy can help DIY enthusiasts, homeowners, and security trainees assess their home’s physical security more effectively. Each part, from the spindle to the strike plate, contributes to the function and resilience of the entire assembly.
For more complex upgrades—like replacing a deadbolt or improving door frame reinforcement—consulting professionals or referring to detailed installation guides is recommended.
